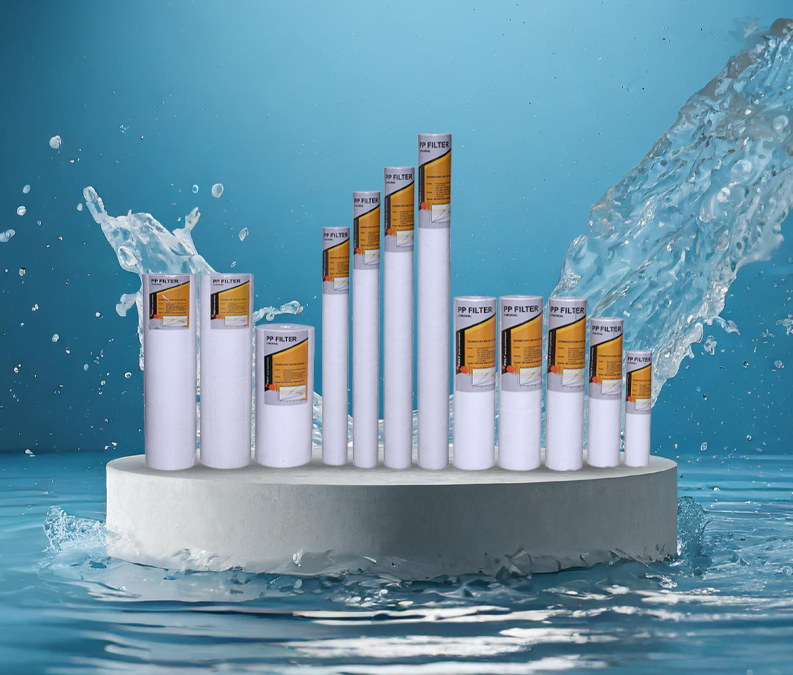

PP Spun Cartridge
Specification
| Table Header | |
|---|---|
| Filter Media | Imported Polypropylene |
| Filter Surface | Plain surface / Dotted surface / Anti-Bacterial |
| Length Inch | 5", 9.75", 9.8", 10", 20", 30", 40", 50" |
| Inside Diameter | 28mm, 30mm |
| Outside Diameter | 2.5"(63mm), 2.55"(65mm) |
| Filtration Rating | 1μm, 3μm, 5μm, 10μm, 25μm, 50μm, 75μm, 100μm |
Feature
- Made of FDA grade PP material, no binders, additives and lubricants
- PP spun cartridges have absolute filtration rating from 1 to 100 micron
- High strength & pressure resistance, stable structure and no fiber released
- Surface pore structure lead to lower pressure drop and higher filtering efficiency
- Special process and types of adapters could be connected, easy to installed in standard housings
- 100% PP spun filters have broad chemical compatibility, widely used for many industrial fluid processing
| Metric | Model 1812-100 | Model 1812-125 | Model 2012-150 |
|---|---|---|---|
| Working Up To | 2500 PPM | 2500 PPM | 2500 PPM |
| Rejection (%) | 97.5 | 97.5 | 97.5 |
| Avg. Permeate (GDP) | 100 | 125 | 150 |
| Avg. Permeate (M3/D) | 0.28 | 0.3 | 0.38 |
| Pressure (PSI) | 60 | 60 | 60 |
| Pressure (MPa) | 0.41 | 0.41 | 0.41 |
| Flow (LPH) | 17L+ | 20L+ | 24L+ |
| Recovery (%) | 15% | 15% | 15% |
Application
Paint industry
Food & Beverages
Chemical industry
Water processing
Electronic industry
Industrial water treatment
Petrochemical industry
Cooling water system
Pre-filter of RO water filtration
De-salination plants
Oil water separation
Medium & low viscosity fluids
| Table Header | |
|---|---|
| Maximum Operating Temperature | 80 ℃ |
| Liquid Flow Direction | Liquid Flow Direction |
| Recommend Change out Differential Pressure | 2.1 kg/cm² |
| Max. Differential Pressure | 1.2kg/cm² at 80 ℃ | 2.1kg/cm² at 60 ℃ | 4.2kg/cm² at 20 ℃ |
| Performance: Operation Data for PP Spun Filter Cartridges | |
ECOLIFE FILTRATION PP Spun Filter Cartridges
- PP Spun Filter Cartridges designed to satisfy the market requirement for high-grade polypropylene spun filter cartridges with exceptional dirt holding capability and good performance. Beside the normal advantage of pp spun filters, the surface structure of pp spun cartridges provides longer service life, higher efficiency and lower pressure drop. The surface pores structure of spun filters spreads water flow to reduce pressure drop, increases the capacity of particle filtration, thus having more value for industrial fluid processing.
Key benefits of PP Spun Cartridge
High‑efficiency purification for reliable, large‑volume water output
Delivers consistently low TDS and better taste by removing dissolved salts, metals, and impurities.
Reduces scaling and fouling in downstream equipment, lowering maintenance and service costs.
Designed for continuous, high‑volume operation, supporting hotels, industries, and offices with stable flow.
Improves overall system efficiency, helping save energy and extend the life of your RO plant.
Performance & applications
Reliable, efficient filtration tailored to your business needs
High‑efficiency purification
Crystal‑clear water with strong removal of dissolved salts and impurities.
Built for heavy duty use
Designed to run for long hours with stable performance in commercial systems.
Lower maintenance costs
Reduces scaling and fouling, helping extend filter and equipment life.
Flexible capacity options
Available in multiple flow rates to match different RO plant sizes.
